More professional functions assist users to accurately monitor when shooting, making and playing movies / videos, such as histogram, peaking filter, false colors, exposure, pixel-to-pixel, check field, nine grid, embedded audio, DSLR scale and so on.
FEELWORLD FW703 4K monitor features "gold size" 7-inch full HD large screen, resolution 1920 * 1200, pixel density up to 323 PPI. The outstanding image quality that allows you to achieve your "VISION".
16.7M color; 1200: 1 contrast ratio; 450 nit brightness; 323 PPI most colorful.
Viewing Angle become very important, as the camera operators may shift his / her position relative to the monitor during the shot. FW703 IPS 160 ° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.
FEELWORLD uses the professional Rec. 709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
FEELWORLD monitor support ITU standards and HD video Rec. 709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Specially designed to merge portability, and functionality, 22mm thickness, 320g lightweight, the FW703 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
Easy operate button design, allowing you immediately to improve the shooting efficiency. F1, F2 custom shortcut function keys, can access to the functions you needs, focus assist, false color, exposure, embedded audio etc.

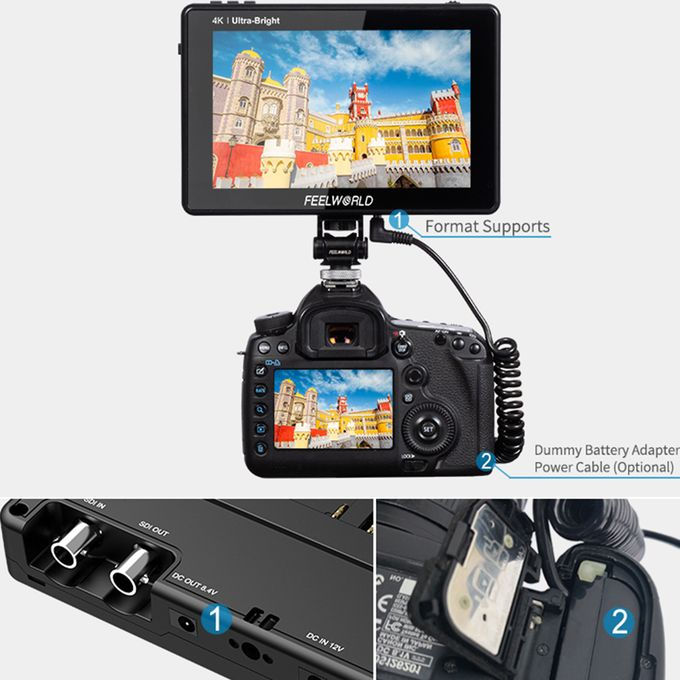

Broadcast quality 3G-SDI, 4K HDMI monitoring, use pro or consumer cameras. The compact design of the FW703 includes 3G-SDI and 4K HDMI input / output, USB Upgrade, 3.5mm Ear Phone Slot, Built-in Speaker. Its SDI Input supports all SD, HD and SDI formats up to 1080p 60Hz and HDMI input supports formats up to 4K 2160p 30Hz, perfect support for almost all signal.
The FW703 has 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the video quality.
Standard 1/4 "-20 Thread Socket for multiple installations. Standard hot shoe mount for 360 ° rotation. Collapsible sunshade for easier viewing in bright environments.
Specifications:
Brand: FEELWORLD
Model: FW703
Screen Size: 7" IPS
Resolution: 1920 * 1200 pixels
Pixel Pitch: 0.07875 (H) * 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 450cd / square meter
Contrast Ratio: 1200: 1
Backlight: LED
Viewing Angle: 80 ° / 80 ° (L / R) 80 ° / 80 ° (U / D)
Input: 3G-SDI; HDMI
Output: 3G-SDI; HDMI
Audio: Stereo Headphone, Speaker
SDI Support Format: 480i / 576i; 720p (60 / 59.94 / 50/30/29/25/24 / 23.98); 1080i (60 / 59.94 / 50); 1080p (60 / 59.94 / 50/30 / 29.97 / 25/24 / 24sF / 23.98 / 23.98sF)
HDMI Input / Output Support Format: 480i / 576i / 480p / 576p; 1080i (60 / 59.94 / 50); 720p (60 / 59.94 / 50/30/29/25/24 / 23.98); 1080p (60 / 59.94 / 50/30 / 29.97 / 25/24 / 24sF / 23.98 / 23.98sF); 4K UHD 3840 × 2160p (30 / 29.97 / 25/24 / 23.98Hz), 4096 × 2160p (24Hz)
Input Voltage: DC6.5 ~ 24V
Consumption: Less than 9W
Working Temperature: -20 ° C ~ 55 ° C
Storage Temperature : -30 ° C ~ 65 ° C
Install Way: 1/4 "-20 thread socket
Battery Plate: F970 (Standard); D28S / D54, LP-E6, U60 (Optional)
